Complete Guide to Crate Engine Installation for Automotive Projects
Pre-Installation Planning
Proper planning is essential for a successful crate engine installation. Before removing the old engine or unboxing your new crate engine, complete the following:
Pre-Installation Checklist
| Item | Details |
|---|---|
| Engine Bay Measurement | Verify dimensions for new engine (width, length, height) |
| Motor Mounts | Confirm correct mounts for chassis and engine combination |
| Transmission Compatibility | Bellhousing pattern, flexplate/flywheel, torque converter balance |
| Cooling System | Radiator capacity adequate for new engine’s horsepower |
| Fuel System | Pressure requirements (carbureted vs. EFI) |
| Electrical | Wiring harness, ECU, battery cables, grounds |
| Exhaust | Headers or manifolds fit chassis, clearance verified |
| Accessories | Alternator, power steering, A/C brackets compatible |
| Tools | Engine hoist, load leveler, torque wrench, engine stand |
Engine Bay Preparation
Step 1: Remove Old Engine
| Action | Detail |
|---|---|
| Disconnect battery | Remove negative terminal first |
| Drain fluids | Coolant, oil, transmission fluid, power steering |
| Label wiring and hoses | Use masking tape and marker for easy reassembly |
| Remove accessories | Alternator, power steering pump, A/C compressor |
| Disconnect exhaust | Remove from manifolds or headers |
| Remove driveshaft | Mark orientation for reinstallation |
| Remove transmission | Support with jack; remove bellhousing bolts |
| Remove engine mounts | Unbolt from frame |
| Lift engine | Use hoist and load leveler; remove slowly |
Step 2: Clean and Paint Engine Bay
Degrease – Remove all oil, grease, and grime
Scrub – Remove rust and old paint
Repair – Fix any rust damage or holes
Prime – Apply automotive primer
Paint – Apply engine bay paint (color of your choice)
Step 3: Prepare for New Engine
| Item | Action |
|---|---|
| Motor mount frames | Clean and inspect; replace if damaged |
| Transmission crossmember | Verify position for new drivetrain |
| Firewall clearance | Verify distributor, valve cover, and wiring clearance |
| Frame modifications | Notch or modify if necessary for LS swaps, etc. |
Motor Mounts & Mounting
Selecting Correct Motor Mounts

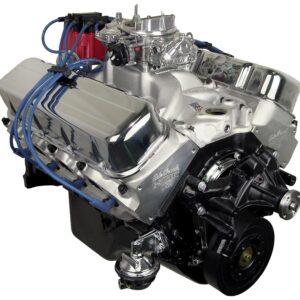

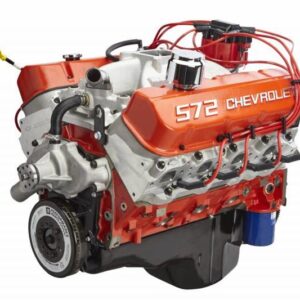

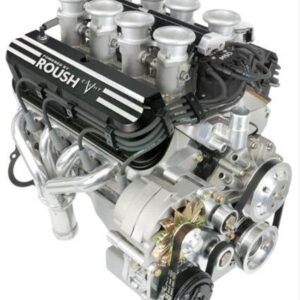

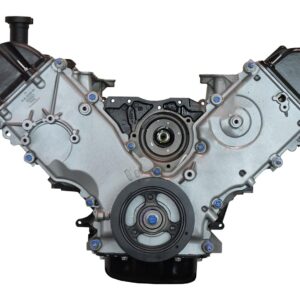

| Application | Recommended Mounts |
|---|---|
| Small Block Chevy in classic car | Factory-style clam shell or conversion mounts |
| LS Swap | Swap plates + adapter mounts (e.g., Holley, Dirty Dingo) |
| Ford Coyote Swap | Ford Performance or aftermarket conversion mounts |
| HEMI Swap | Mopar Performance or aftermarket mounts |

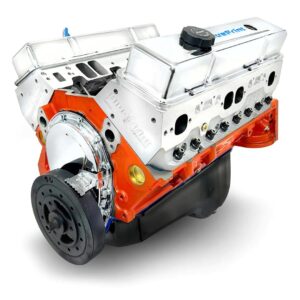

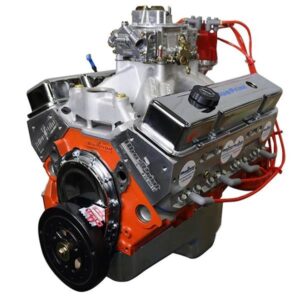

| BluePrint Engine | Standard mounts for respective engine family |
Engine Mount Installation
| Step | Action |
|---|---|
| 1 | Install motor mounts on engine (do not fully tighten) |
| 2 | Lower engine into engine bay slowly |
| 3 | Align mounts with frame stands |
| 4 | Install mount bolts (finger tight) |
| 5 | Adjust engine position for transmission alignment |
| 6 | Torque mount bolts to specification |
Torque Specifications (Typical):
| Component | Torque |
|---|---|
| Mount to engine | 35–45 lb-ft (47–61 Nm) |
| Mount to frame | 50–70 lb-ft (68–95 Nm) |
| Through-bolt | 60–80 lb-ft (81–108 Nm) |
Transmission & Drivetrain
Transmission Compatibility
| Engine | Compatible Transmissions |
|---|---|
| Small Block Chevy | TH350, TH400, 700R4, 4L60E, 4L80E, T5, T56 |
| GM LS | 4L60E, 4L80E, 6L80, 6L90, T56, TR6060 (requires specific bellhousing) |
| Ford Coyote | 6R80, 10R80, MT82, T56 (with adapter) |
| Mopar HEMI | 8HP70, 8HP90, NAG1, T56 (with adapter) |
Flexplate / Flywheel Selection
| Factor | Consideration |
|---|---|
| Engine balance | Internal vs. external (SBC 400 external; LS internal) |
| Transmission type | Automatic requires flexplate; manual requires flywheel |
| Torque converter | Must match flexplate bolt pattern |
| Starter | Match starter to flexplate/flywheel tooth count |
Driveshaft Considerations
| Item | Action |
|---|---|
| Length | New engine/transmission combination may change driveshaft length |
| Yoke | Verify transmission yoke compatibility |
| U-joints | Ensure correct size and type |
| Pinion angle | Set between 2–4 degrees downward |
Cooling System
Radiator Selection
| Engine | Recommended Radiator |
|---|---|
| SBC (under 400 HP) | 2-row aluminum, 26″ width |
| SBC (400+ HP) | 3-4 row aluminum, dual electric fans |
| LS Series | LS-specific aluminum radiator with steam port |
| Ford Coyote | Coyote-specific radiator with integrated reservoir |
| HEMI | High-capacity aluminum, dual fans |
Cooling System Installation
| Step | Action |
|---|---|
| 1 | Install radiator and mounting brackets |
| 2 | Install electric fans (or mechanical fan) |
| 3 | Route upper and lower radiator hoses |
| 4 | Install heater hoses (if applicable) |
| 5 | Fill with proper coolant mixture (typically 50/50) |
| 6 | Burp cooling system to remove air pockets |
Steam Vent (LS Engines)
LS engines require a steam vent line from the front of each cylinder head:
| Configuration | Connection |
|---|---|
| LS1/LS6 | Connect both heads to highest point in cooling system |
| LS2/LS3/LS7 | Connect to radiator or coolant reservoir |
| LSA/LS9 | Factory steam crossover included |
Fuel System
Fuel System Requirements
| Engine Type | Pressure | Components |
|---|---|---|
| Carbureted | 5–7 psi | Mechanical fuel pump or low-pressure electric |
| EFI (LS, Coyote, HEMI) | 58–65 psi | In-tank pump or external high-pressure pump |
Fuel System Components
| Component | Recommendation |
|---|---|
| Fuel Pump | In-tank pump preferred (quieter, cooler, longer life) |
| Fuel Filter | 10-micron filter before injectors |
| Fuel Lines | PTFE-lined hose for EFI (ethanol compatible) |
| Fuel Rail | Use engine-specific fuel rail with pressure regulator |
Installation Steps
| Step | Action |
|---|---|
| 1 | Install fuel pump (in-tank or external) |
| 2 | Run fuel lines from tank to engine (use proper fittings) |
| 3 | Install fuel filter |
| 4 | Connect fuel lines to engine |
| 5 | Pressure test system (no leaks) |
| 6 | Prime fuel system before first start |
Electrical & ECU
Wiring Harness Options
| Option | Best For |
|---|---|
| Factory Harness | OEM restoration; requires modification for standalone use |
| Standalone Harness | LS swaps, Coyote swaps, aftermarket ECU |
| Universal Harness | Custom builds, race cars |
Standalone ECU Systems
| System | Best For |
|---|---|
| Holley Terminator X | LS swaps, GM engines (plug-and-play) |
| Holley Dominator | High-horsepower, advanced features |
| MSD Atomic | Simple EFI, carburetor replacement |
| Ford Performance Control Pack | Coyote crate engines |
| Mopar Performance | HEMI crate engines |
Wiring Installation
| Step | Action |
|---|---|
| 1 | Mount ECU in dry, protected location (inside cabin preferred) |
| 2 | Route main harness through firewall using grommet |
| 3 | Connect engine sensors per harness instructions |
| 4 | Connect power (battery) and ground directly to battery or chassis |
| 5 | Connect fuel pump relay and cooling fan controls |
| 6 | Connect ECU to laptop or handheld programmer |
| 7 | Upload base tune appropriate for your engine |
Grounding Requirements
| Ground Point | Importance |
|---|---|
| Engine to chassis | Critical for starter, sensors, ECU |
| Battery to chassis | Main ground path |
| Battery to engine | High-current path for starter |
| ECU ground | Must be clean, direct to engine or battery |
Exhaust System
Header / Manifold Selection
| Engine | Header Considerations |
|---|---|
| Small Block Chevy | 1-5/8″ or 1-3/4″ primary; long tube or shorty |
| LS Series | LS-specific headers; clearance for steering, frame |
| Ford Coyote | Coyote-specific headers; frame clearance critical |
| HEMI | HEMI-specific headers; often require custom fabrication |
Exhaust Installation
| Step | Action |
|---|---|
| 1 | Install headers or manifolds with new gaskets |
| 2 | Torque header bolts to specification (re-torque after heat cycle) |
| 3 | Install exhaust pipes from headers to mufflers |
| 4 | Install mufflers and tailpipes |
| 5 | Use exhaust hangers to support weight |
| 6 | Check for clearance from fuel lines, wiring, brake lines |
Exhaust Gasket Tips
Use copper or graphite gaskets for better sealing
Re-torque header bolts after first heat cycle
Use locking hardware or Stage 8 fasteners for headers
Accessory Installation
Accessory Drive Components
| Component | Considerations |
|---|---|
| Alternator | Match output to electrical demands (100+ amps for EFI) |
| Power Steering | Verify pump compatibility with chassis |
| A/C Compressor | Requires specific brackets for engine |
| Water Pump | Direction (standard vs. reverse rotation) |
| Crankshaft Pulley | Must align with all accessories |
Belt Routing
| Step | Action |
|---|---|
| 1 | Install all accessory brackets |
| 2 | Mount accessories (alternator, power steering, etc.) |
| 3 | Install belt according to routing diagram |
| 4 | Verify belt tension (1/2″ deflection at longest span) |
| 5 | Check alignment (use straight edge across pulleys) |
First Start Procedure
Before Starting
| Step | Action |
|---|---|
| 1 | Double-check all fluid levels (oil, coolant, transmission, power steering) |
| 2 | Prime oil system (use priming tool or remove fuel pump fuse and crank) |
| 3 | Prime fuel system (cycle key to pressurize) |
| 4 | Verify battery is fully charged |
| 5 | Set initial timing (if applicable) |
| 6 | Have fire extinguisher nearby |
| 7 | Have assistant ready to monitor gauges |
First Start Sequence
| Step | Action |
|---|---|
| 1 | Crank engine without spark (or pull fuel pump fuse) to build oil pressure |
| 2 | Reconnect spark or fuel, crank engine |
| 3 | Once started, immediately bring RPM to 2,000–2,500 |
| 4 | Check oil pressure (should be 40–60 psi) |
| 5 | Listen for unusual noises (knocks, ticks) |
| 6 | Check for leaks (fuel, coolant, oil) |
| 7 | Monitor temperature (should stabilize within 5–10 minutes) |
Troubleshooting First Start Issues
| Issue | Possible Cause |
|---|---|
| No crank | Battery, starter wiring, neutral safety switch, grounds |
| Cranks, no start | No fuel, no spark, incorrect timing, security system |
| Starts, dies | Fuel pressure, vacuum leak, idle air control |
| Rough idle | Vacuum leak, timing, sensor issues |
| No oil pressure | Priming failure, defective gauge, oil pump issue (stop immediately) |
| Overheating | Air in cooling system, thermostat stuck, fan not working |
Break-In Guidelines
Break-In Oil
| Camshaft Type | Break-In Oil Requirements |
|---|---|
| Flat Tappet | High-zinc (ZDDP) break-in oil (1200–1500 ppm zinc) |
| Hydraulic Roller | Conventional oil (10W-30 or 10W-40) |
| Solid Roller | High-zinc break-in oil |
Break-In Procedure
| Period | Action |
|---|---|
| First 20–30 minutes | Run at 2,000–2,500 RPM; vary RPM frequently; do not let it idle |
| After break-in run | Shut off, change oil and filter immediately |
| First 500 miles | Avoid sustained wide-open throttle; vary RPM; avoid heavy towing |
| 500 miles | Change oil and filter again; switch to recommended oil |
Break-In Log
| Hour | RPM | Temperature | Oil Pressure | Notes |
|---|---|---|---|---|
| 0–0.5 | 2,000–2,500 | |||
| 0.5–1.0 | 2,000–2,500 | |||
| etc. |
Common Installation Mistakes
| Mistake | Consequence | Prevention |
|---|---|---|
| Incorrect motor mounts | Misalignment, vibration, transmission damage | Verify mounts for specific chassis/engine combination |
| Improper transmission alignment | Premature wear, vibration, transmission failure | Use alignment dowels; verify bellhousing concentricity |
| Inadequate cooling | Overheating, engine damage | Match radiator size to engine horsepower |
| Low-quality fuel lines | Fuel leaks, fire risk | Use PTFE-lined EFI hose with proper fittings |
| Poor grounds | Electrical issues, sensor errors, no-start | Clean, direct grounds to engine and chassis |
| No oil priming | Camshaft/lifter failure on first start | Prime oil system before first start |
| Idling during break-in | Camshaft lobe wear (flat tappet) | Run at 2,000–2,500 RPM for first 20 minutes |
| Improper header bolts | Exhaust leaks, blown gaskets | Use locking hardware; re-torque after heat cycle |
Professional Installation
While experienced DIY mechanics can install a crate engine, professional installation is strongly recommended for:
| Scenario | Reason |
|---|---|
| BluePrint Engines | Required for warranty validity |
| LS Swaps | Wiring, ECU tuning, and accessory drive complexity |
| Coyote Swaps | Cooling, electrical, and packaging challenges |
| HEMI Swaps | Custom fabrication often required |
| Warranty coverage | Most manufacturers require professional installation |
Recommended Installers
We can recommend qualified automotive installers in your area. Contact us for a referral.
| Region | Referral Available |
|---|---|
| Poland (Tricity area) | ✅ Yes |
| Rest of Poland | ✅ Limited |
| European Union | Contact for recommendation |
Safety Precautions
| Hazard | Precaution |
|---|---|
| Fuel | Work in well-ventilated area; no open flames; disconnect battery |
| Electrical | Disconnect battery before working on wiring |
| Heavy Components | Use proper lifting equipment; engines weigh 180–300+ kg |
| Sharp Edges | Wear gloves; use grommets for wiring pass-throughs |
| Coolant | Use proper disposal; antifreeze is toxic to pets and wildlife |
| Hot Surfaces | Allow engine to cool before working on exhaust or cooling system |
Need Help?
Our technical support team is available to assist with crate engine installation questions.
| Department | Contact | Best For |
|---|---|---|
| Technical Support | help-desk@electricalmarinesolutions.pl | Installation questions, troubleshooting, wiring |
| Sales | sales@electricalmarinesolutions.pl | Engines, parts, accessories, mounts |
| Finance | finance@electricalmarinesolutions.pl | Invoicing, payments |
Before contacting us, please have ready:
Engine make, model, and serial number
Vehicle make, model, and year
Photos of your engine bay or current setup
Specific questions or issues
